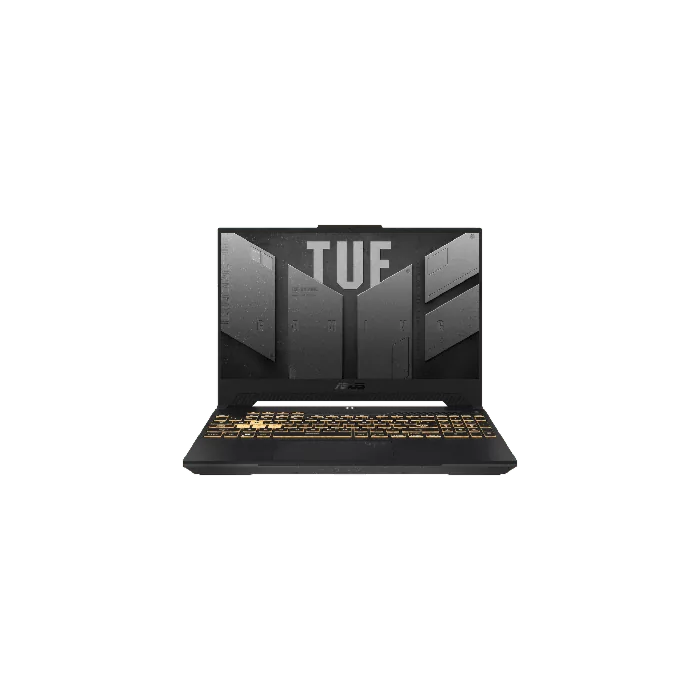

ASUS TUF Gaming F15 FX507ZC4 – Alder Lake – 12th Gen Core i7 Tetradeca-Core Processor 16GB 512-GB SSD 4-GB NVIDIA GeForce RTX3050 GDDR6 GC 15.6″ FHD IPS 144Hz Display DolbyAtmos Sound 1-Zone RGB BKB (Mechanical Grey, 2 Year ASUS Direct Local Warranty)

Asus TUF Gaming F15 FX507ZC4 Gaming Laptop in Pakistan

Asus is one of the most trusted brands when it comes to offering gaming laptops. Its TUF series of products are known for providing a great price-to-performance ratio. In the case of the Asus TUF Gaming F15 FX507ZC4, it is powered by Intel’s Alder Lake series of processors, combined with Nvidia’s 3000 series of GPUs.

Design

The primary objective in designing a gaming laptop is to create a chassis that facilitates flawless air ventilation, preventing any thermal throttling that could interrupt the game. In this case, the setup allows air to enter along the sides and exit through the back of the notebook, ensuring optimal cooling during extended game sessions.

Intel 12th Generation Processor

The playing experience is tuned to be driven by the Intel Core i7 12th Generation 12700H processor. It is a tetra-deca core processor, which means it comes packed with 14 cores and 20 cores, with an Intel Smart Cache of 24 MB. Even though these cores are distributed amongst 6 are performance and the remaining 8 are efficiency cores, the overall multicore performance is not compromised by any factor imaginable, even if it requires multithreaded processing.

The included performance ones are clocked at 2.3 GHz and can reach a max clock frequency of 4.7 GHz all thanks to Intel’s Turbo Boost Technology, which allows it to take full advantage of its hardware. During this transition the overall power consumption is limited to 45 to 115 watts, this is all thanks to the presence of efficiency ones.

The integrated Iris Xe GPU boasts a Max dynamic graphical frequency of 1.40 GHz, its presence in the system always comes in handy whenever one needs to save power, which cuts the power to discrete GPU and uses the integrated one.

Nvidia GeForce RTX 3000 Series Graphics Card

Also included inside is the Nvidia GeForce RTX 3050 Graphics Card that is provided with 4GB of GDDR6 graphical memory. It is clocked at a rate of 1740 MHz while drawing 80 watts. At this point it can be overclocked with a dynamic Boost which raises the clock speed to 1790 MHz and the power draw is risen by 15 watts.

Memory and Storage

The laptop is with 16 GB RAM, which is stored over the dual-channel configured DDR4 Memory Stick which offers a clocked transfer rate of 3200 MT/s SO-DIMM. The maximum achievable capacity is 32GB which means the system is open to memory upgrades.

The storage capacity is 512 GB it is stored over the PCIe NVMe M.2 Solid State Drive, which offers fast read and write speeds, combined together resulting in quick boot and reload times.

Display

The 15.6-inch IPS Level Panel plays an important role in the whole experience, by displaying the picture in a resolution of Full HD at 1920 x 1080, with an aspect ratio of 16:9l, while the Anti-glare surfacing helps in rejecting the reflections faced by the panel. Also ensuring the factor of productivity is sRGB space coverage of 100%, and Adobe space coverage of 75.35% while Refreshing at a Rate of 144Hz. As standard it comes with the support for Adaptive-Sync, MUX Switch + Optimus which helps it in switching between the dedicated and the integrated GPU.

Battery

The main source of power in the unplugged state is the integrated 4S1P 4 Cell Lithoiuk Ion Battery packing a capacity of 56 Wh, which recharges using the ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal.

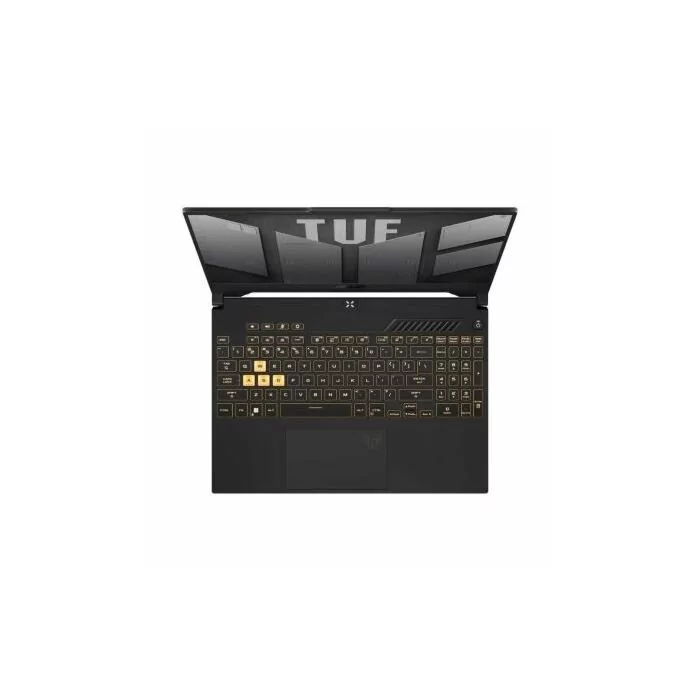

Keyboard and Trackpad

The yellow accents on the LED Backlit Chiclet-style Keyboard with Single Zone RGB complement the game aesthetic of the device, located along the fully clickable multi-gesture-supported Touchpad.

Other Specs

The camera included is capable of recording at a resolution of 720P. The audio setup is tuned with Dolby Atmos and also supports AI noise-canceling technology, which also has a hi-res certification (for headphones), over the setup of a 2-speaker system. It also contains a Built-in array microphone.

The wireless signals are processed by the Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card. The array of ports includes 1x 3.5mm Combo Audio Jack, 1x HDMI 2.0b, 2x USB 3.2 Gen 1 Type-As, 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / G-SYNC, 1x RJ45 LAN port ethernet adapter, 1x Thunderbolt™ 4 supports DisplayPort.
